APS : Arrayable Point Source.

Compact 3-way Arrayable Point Source

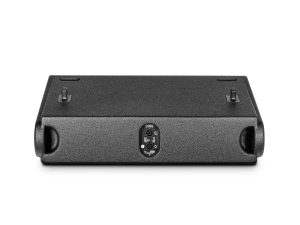

APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Size Comparison
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Photo
APS Size Comparison

Unique 9” Dual Diaphragm Curved-wave-driver (DDC), dual 10" neodymium ultra low distortion cone drivers

  • The APS is a compact 2x 10” / 3-way arrayable point source that combines the user-friendliness of a point source with the perfect arrayability of a line array creating a unique category reinforcement system for medium size venues.


Main Features

  • 3-way Arrayable Point Source
  • Unique 9” Dual Diaphragm Curved-wave-driver (DDC)
  • Dual 10″ neodymium ultra low distortion cone drivers
  • APS-COUPLER sums the energy from all transducers to perform as a single source
  • Integrated rigging system for horizontal or vertical arrays as well as Single use
  • Variable horizontal coverage: 120°, 90°, 60° or asymmetrical: 105° (45°+60°); 90° (30°+60°); 75° (30°+45°)
  • Variable vertical coverage of 20° (one cabinet), 40° (two cabinets), 60° (3 cabinets) etc. up to 360° (18 Cabinets)
  • Linear phase response for superior fidelity
  • Frequency range: 50 Hz – 22 kHz
  • Exceptionally high sound pressure
  • Multiplex enclosure with Polyurea coating for extreme durability and water protection

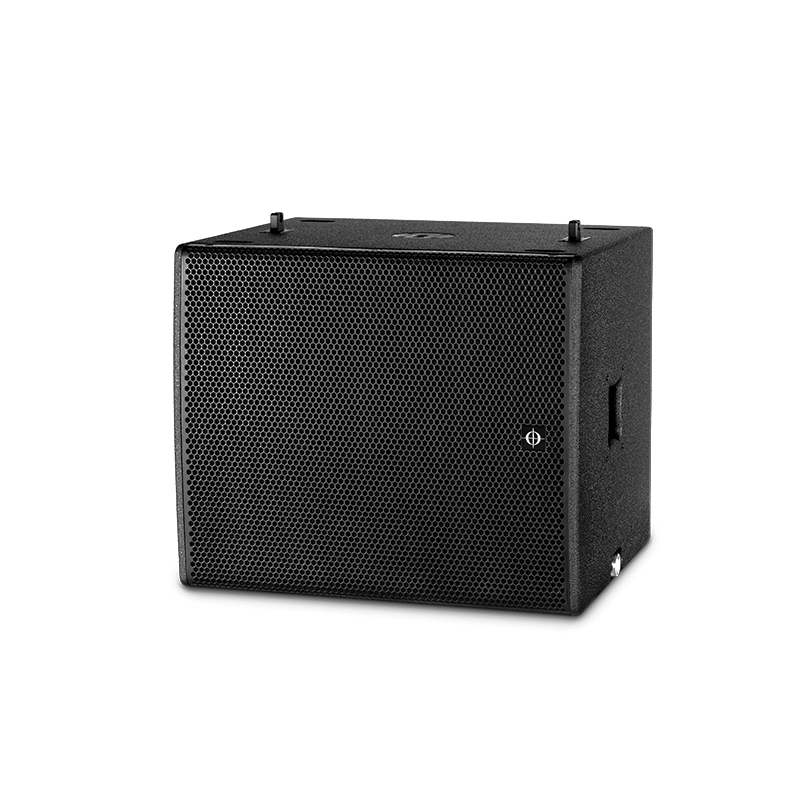

  • Subwoofer extension down to 28 Hz with APS-SUB
  • System integration with LINUS amplifiers

This post is also available in: Deutsch (German)

Overview

APS is CODA’s most flexible three-way solution when it comes to medium size applications, and is a true hybrid of point source and line array.

At the heart of APS is a string of CODA Audio’s uber-advanced technologies, the highlight perhaps being the unique DDC (Dual Diaphragm Curved-wave-driver) – similar to CODA’s DDP driver, but with a bit of a twist, in that the wavefront is curved. This ultimately means there is no distortion, and no reshaping required, so it offers extraordinary sonic precision. As a result, when you put more APS together, they perform as one single cabinet, with no interference whatsoever.

Also, each DDC driver is a two-way coaxial system with two concentric ring diaphragms instead of domes, where all pieces of the diaphragm are very close to the voice coil. So when the voice coil moves, the diaphragm moves as a piston, because the wavelength is larger than the diaphragm itself; and that means it can constantly accept the wavelengths without any distortion. In other words, it delivers the purest audio you can get. And because there are two diaphragms on the ring (one inside the voice coil, one outside), it’s actually larger than a dome. The higher frequencies are produced from one diaphragm, and for the lows, both diaphragms are working in phase.

Then there is the APS-COUPLER, which basically sums all the energy from the transducers into a large mutual horn. This occupies the entire front of the cabinet, which means there is no phase destructions, and users will get a perfectly coherent and uniform wavefront, power response, and directivity over a wide frequency range.

Add to this the APS-SUB, which goes down to 28 Hz, and you have a fully integrated solution for DSP control, amplification, I/O audio routing, network remote control, and diagnostics.

System Solutions

NO. 1: 12x APS

SYSTEM COMPONENTS:

12x APS
1x LINUS14
4x FRV-APS
3x CAL-COMB2
8x CAB-4
4x FC-APS

NO. 2: 6x APS + 6x APS-SUB

SYSTEM COMPONENTS:

6x APS
6x APS-SUB
1x LINUS14
2x LID-APS-SUB
2x GAH-APS
2x CAL4SP-10
6x CAL4SP-1,5
4x CAB4
2x FC-APS
2x DOT-APS-SUB
2x CO-APS-SUB-3

NO. 3: 8x APS-SUB

SYSTEM COMPONENTS:

8x APS-SUB
1x LINUS14
2x CAL-Comb1
4x DOT-APS-SUB

NO. 4: 8x APS-SUB

SYSTEM COMPONENTS:

8x APS-SUB
1x LINUS14
2x CAL-Comb1
4x DOT-APS-SUB

2x APS + 2x APS-SUB

SYSTEM COMPONENTS:

2x APS
2x APS-SUB
1x LINUS10-C (LINUS14, LINUS10)
2x CU-APS
1x DOT-APS-SUB
4x CAL4SP-10

Rigging Examples

APS Flown Arrays Example 1

  • 3x APS
  • 1x APS-SUB
  • 1x FRV-APS

APS Flown Arrays Example 2

  • 4x APS
  • 1x FRV-APS

APS Flown Arrays Example 3

  • 6x APS
  • 1x FRV-APS

APS Flown Arrays Example 4

  • 8x APS
  • 2x FRV-APS
  • 1x FRV-DA-APS Set

APS Flown Arrays Example 5

  • 3x APS
  • 1x FRH-APS

APS Flown Arrays Example 6

  • 4x APS
  • 2x FRH-APS
  • 1x BAR-APS

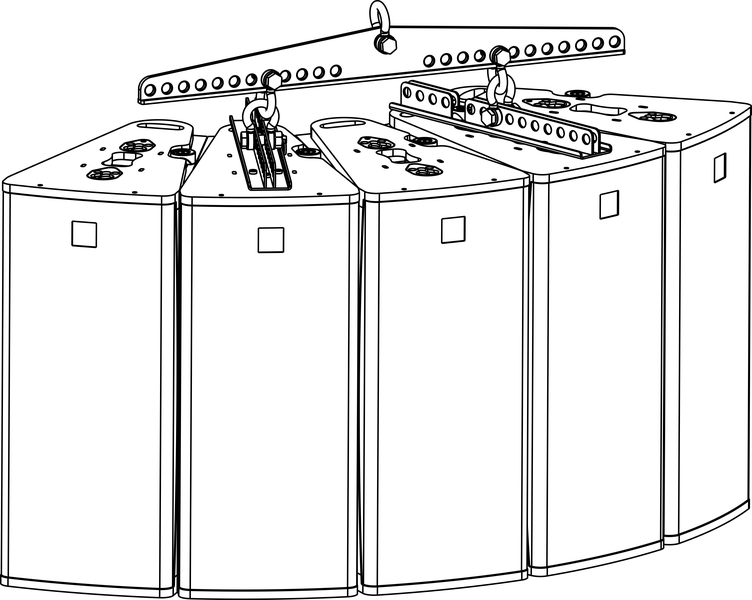

APS Flown Arrays Example 7

  • 5x APS
  • 2x FRH-APS
  • 1x BAR-APS

APS Ground Stacked Arrays Example 1

  • 1x APS
  • 1x APS-SUB
  • 1x CU-APS
  • 1x KM21337

APS Ground Stacked Arrays Example 2

  • 2x APS
  • 1x APS-SUB
  • 1x CU-APS
  • 1x KM21337

APS Ground Stacked Arrays Example 3

  • 3x APS
  • 3x APS-SUB
  • 1x LID-APS-SUB
  • 1x GAH-APS

APS Ground Stacked Arrays Example 4

  • 3x APS
  • 3x APS-SUB
  • 1x GA-APS

Specification



Type: 3-way Arrayable Point Source
Frequency response: 50 Hz – 22 kHz (-6 dB)
Power handling:
Low AES peak: 1200 W / 4800 W
Mid / High AES / peak: 150 W / 1300 W
Sensitivity:
Low 1 W / 1 m: 100 dB
Mid / High 1 W / 1 m: 111 dB
Maximum peak SPL (with LINUS14)
Low: 137 dB
Mid / High: 146 dB
Amplification, cabinets per amplifier:
LINUS10-C Optimum / Maximum: 8/12
LINUS14D Optimum / Maximum: 8/12
LINUS10 Optimum / Maximum: 4/8
Dispersion horizontal: 120°, 90°, 60° or 105° (45°+60°); 90° (30°+60°); 75° (30°+45°)
Dispersion vertical: 20°
Components:
Low frequency: 2x 10″ neodymium, water resistant cones 3″ (77 mm) voice coil, 600 W (AES) each
Mid / High frequency: 9″ coaxial neodymium 20° Curved-wave-driver
Mid: 3.5″ (90 mm) voice coil, 150 W (AES)
High: 1.75″ (44.4 mm) voice coil, 80 W (AES)
Crossover point: 500 Hz, 6300 Hz passive
Input connectors: 2x Neutrik™ NL4MP
Nominal impedance: 8 Ω (2+/2-)
Enclosure material: Birch plywood
Finish: Polyurea coating
Flying hardware: Integrated
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (Amphenol connectors)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD): 674 x 291 x 492 mm / 26.54 x 11.46 x 19.37″
Net weight: 27 kg / 59.52 lbs

* Pink noise 6 dB crest factor.

Accessories

  • FRV-APS

    This post is also available in: Deutsch (German)

    Frame for vertically arrayed APS or APS-SUB

  • FRH-APS

    This post is also available in: Deutsch (German)

    Frame for horizontally arrayed APS

  • EXBAR FRV-FRH

    This post is also available in: Deutsch (German)

    Extension bar for FRV-APS, FRV-N-APS, FRH-APS, FRH-N-APS

  • BAR-APS

    This post is also available in: Deutsch (German)

    Frame for horizontally arrayed APS Cluster

  • CU-APS

    This post is also available in: Deutsch (German)

    Distance pole adapter for vertically stacked APS

  • GA-APS

    This post is also available in: Deutsch (German)

    Groundstack adapter for APS/APS-SUB

  • LID-APS-SUB

    This post is also available in: Deutsch (German)

    Groundstack adapter plate for horizontally arrayed APS on APS-SUB

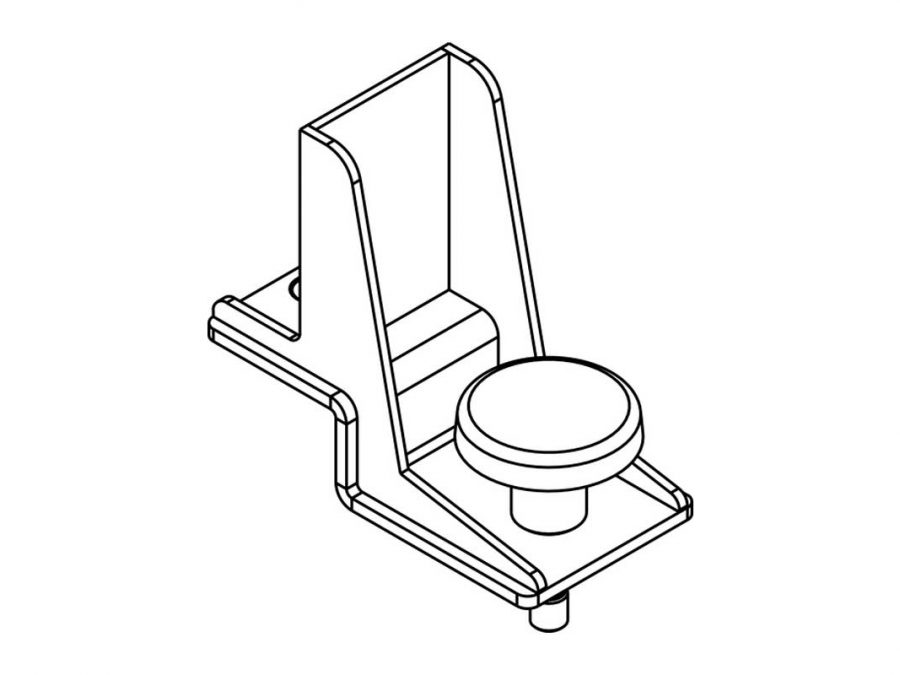

  • GAH-APS

    This post is also available in: Deutsch (German)

    Groundstack adapter for horizontally stacked APS

  • VARIO CLAMP

    This post is also available in: Deutsch (German)

    General truss clamp for AiRAY, ViRAY, N-RAY, TiRAY, APS, N-APS frames and extension bar

  • AV-APS

    This post is also available in: Deutsch (German)

    U-Bracket for up to 2x APS, vertically stacked or flown

  • FRV-DA-APS

    This post is also available in: Deutsch (German)

    Down adapter for APS

  • CAL-COMB2

    This post is also available in: Deutsch (German)

    Loudspeaker Cable (2CH), NL4 to 2x NL4 (2+/2-) – 10m

Downloads

FileAction
APS DatasheetDownload
APS CAD Drawing 2DDownload
APS CAD Drawing 3DDownload
APS-V1-1 GLL-FileDownload
APS Loading CapacityDownload
APS Accessories - DrawingsDownload
CODA Audio Weather Protection Download
