D5-Cube : Point Source.

Ultra Compact 2-way Coaxial System

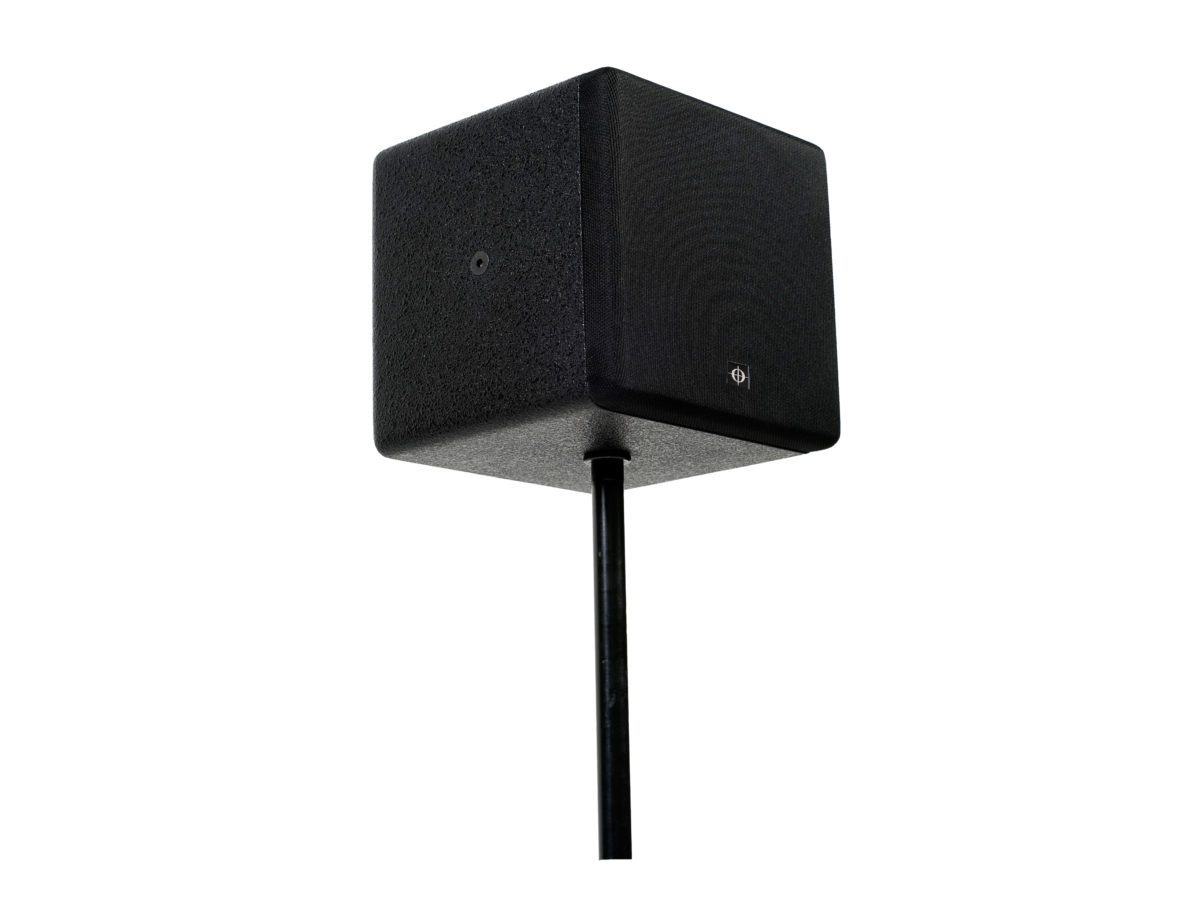

D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Size Comparison
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Photo
D5-Cube Size Comparison

Ultra compact 2-way coaxial system 5"/1" coaxial loudspeaker

  • The D5-Cube utilises a classic wooden enclosure to house a passive 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide a true one point source.


Main Features

  • Ultra compact 2-way coaxial system
  • 5″/1″ coaxial loudspeaker
  • Single point source system providing coherent wave front
  • Superb quality sound
  • Impedance 16 Ohm for easy daisy chaining

This post is also available in: Deutsch (German)

Overview

The CODA D5 is a passive 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide a true one point source in an ultra compact package. The D5-Cube utilises a classic wooden enclosure.

The cabinet contains a high power 5” woofer and a coaxially mounted neodymium driver with 44.4 mm voice coil. The advanced design aligns the acoustical centres of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.

Supported with a full range of mounting and flying accessories the D5-Cube sets a state of the art solution for almost any high quality, near field installed sound reinforcement applications.

System Solutions

NO. 1: 32x D5

SYSTEM COMPONENTS:

32x D5-Cube or D5-Tube or D5-Ceiling
1x LINUS5-C / LINUS10-C

NO. 2: 16x D5 + 8x PW12

SYSTEM COMPONENTS:

16x D5-Cube or D5-Tube or D5-Ceiling
8x PW12
1x LINUS5-C / LINUS10-C

Specification

Type: Ultra Compact 2-way Coaxial System
Application: Superior quality short throw
Frequency response: 90 Hz – 21 kHz (-6 dB)
Power handling AES: 125 W
Program power: 250 W
Peak Power: 500 W
Sensitivity: 91 dB
Max. SPL peak: 117 dB
Dispersion: 90° conical
Components:
Low frequency: 5″ woofer,
1.5″ (38 mm) voice coil, 120 W (AES)
High frequency: 1″ coaxially mounted driver,
1.75″ (44.4 mm) voice coil, 80 W (AES)
Crossover point: 1600 Hz passive
Nominal impedance: 16 Ω
100 V version (optional): 100 VA
Input connectors: 2 x Neutrik™ NL4MP
Enclosure material: Birch plywood
Suspension: 4x M6, 1x 3/8″ threaded points, U-bracket included
IP rating (IEC 60529): IP23
Weather protection options: MG1 (Marine Grade 1): IP56
Dimensions (WxHxD): 160 x 160 x 160 mm / 6.3 x 6.3 x 6.3″
Net weight: 3.5 kg / 7.72 lbs

* Measured with pink noice 6 dB crest factor. Half-space loading.

Accessories

  • CU5DC

    This post is also available in: Deutsch (German)

    Vertical u-bracket for D5-CUBE

  • 24471

    This post is also available in: Deutsch (German)

    Wall mount for D5-Cube, G308-Pro, HOPS5 and HOPS8

  • D5-TUBE 100V

    This post is also available in: Deutsch (German)

    D5-TUBE / D5-CUBE including 100 V TRAFO, 100 VA

Downloads

FileAction
D5-Cube DatasheetDownload
D5-Cube CAD Drawing 2DDownload
D5-Cube CAD Drawing 3DDownload
D5-Cube Accessoires - DrawingsDownload
D5-Cube EASE DataDownload
