D8 : Point Source.

Compact 2-way Coaxial System for Installations

D8 Photo
D8 Photo
D8 Photo
D8 Photo
D8 Photo
D8 Photo
D8 Photo

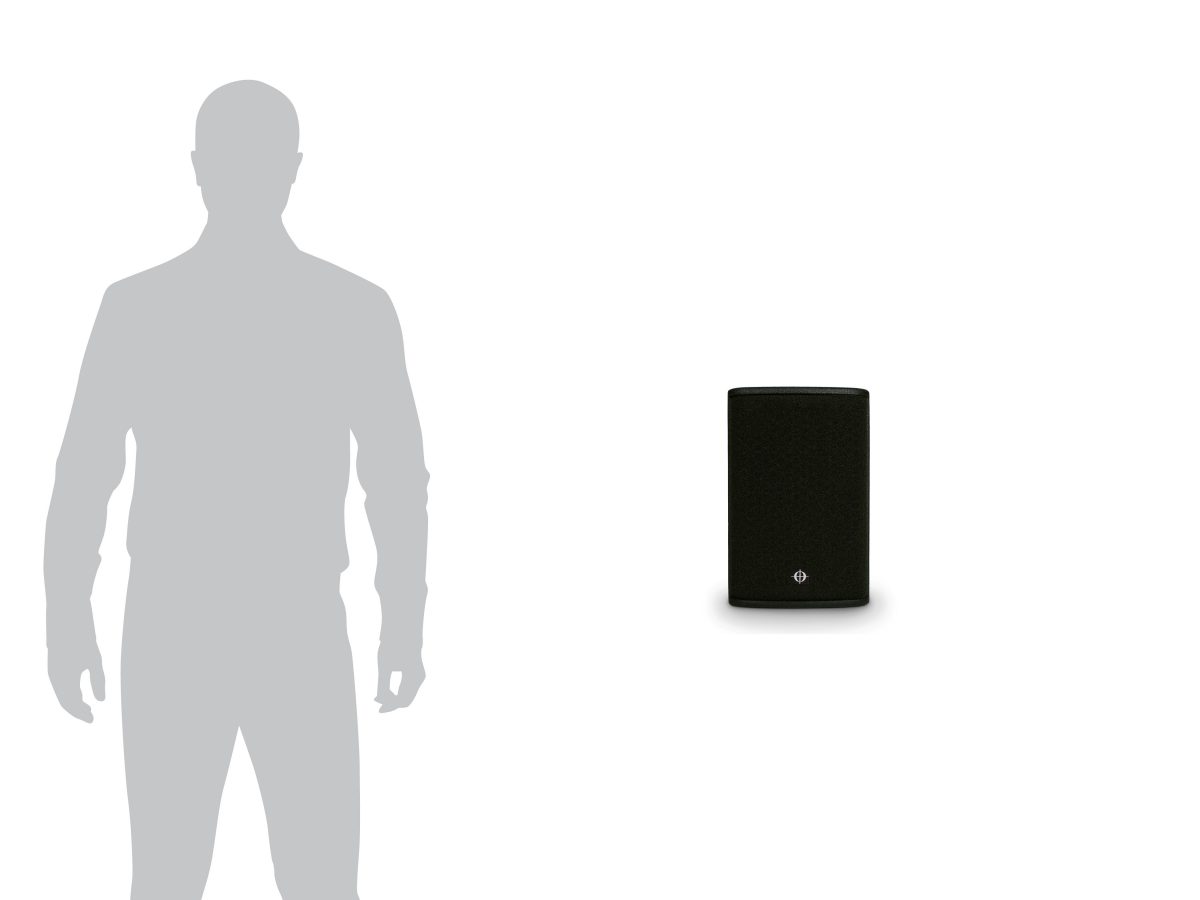

D8 Size Comparison
D8 Photo
D8 Photo
D8 Photo
D8 Photo
D8 Photo
D8 Photo
D8 Photo
D8 Size Comparison

Compact 2-way coaxial system, 8”/1” coaxial neodymium loudspeaker, Single point source system providing coherent wave front

  • The CODA D8 is a 2-way coaxial loudspeaker system designed without compromise to provide a true one point source in an ultra compact package.


Main Features

  • Ultra compact 2-way coaxial system
  • 8”/1” coaxial neodymium loudspeaker
  • Single point source system providing coherent wave front
  • Superb quality sound
  • M6 flying points
  • Improved transient response

This post is also available in: Deutsch (German)

Overview

The CODA D8 is a 2-way coaxial loudspeaker system designed without compromise to provide a true one point source in an ultra compact package. The cabinet contains a high power 8” woofer and a coaxially mounted neodymium driver with 44.4 mm voice coil.

The advanced design aligns the acoustical centres of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.

Supported with a full range of mounting and flying accessories the D8 sets a state of the art solution for almost any high quality, near field installed sound reinforcement applications.

System Solutions

NO. 1: 32x D8

SYSTEM COMPONENTS:

32x D8
1x LINUS5-C / LINUS10-C

NO. 2: 16x D8 + 8x PW12

SYSTEM COMPONENTS:

16x D8
8x PW12
1x LINUS5-C / LINUS10-C

Specification

Type: Compact Passive 2-way Coaxial System for Installations
Application: Superior quality short throw
Frequency response: 65 Hz – 21 kHz (-6 dB)
Power handling AES: 250 W / 1000 W
Program power: 500 W
Peak power: 1000 W
Sensitivity: 95 dB
Max. SPL peak: 124 dB
Dispersion: 90° conical
Components:
Low frequency: 8″ neodymium woofer,
2″ (52 mm) voice coil, 250 W (AES)
High frequency: 1″ neodymium driver,
1.75″ (44.4 mm) voice coil, 80 W (AES)
Crossover point: 1500 Hz passive
Nominal impedance: 16 Ω
100 V version (optional): 100 VA
Input connectors: 2x Neutrik™ NL4MP
Enclosure material: 12/15 mm birch multiplex
Finish: Textured black paint (all RAL-colors optional)
Weatherproof version: Optional
Suspension: 10x M6 threaded points
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (direct cable)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD): 230 x 348 x 263 mm /  9.05 x 13.7 x 10.35″
Net weight: 7 kg / 15.43 lbs

* Measured with pink noice 6 dB crest factor. Half-space loading.

Accessories

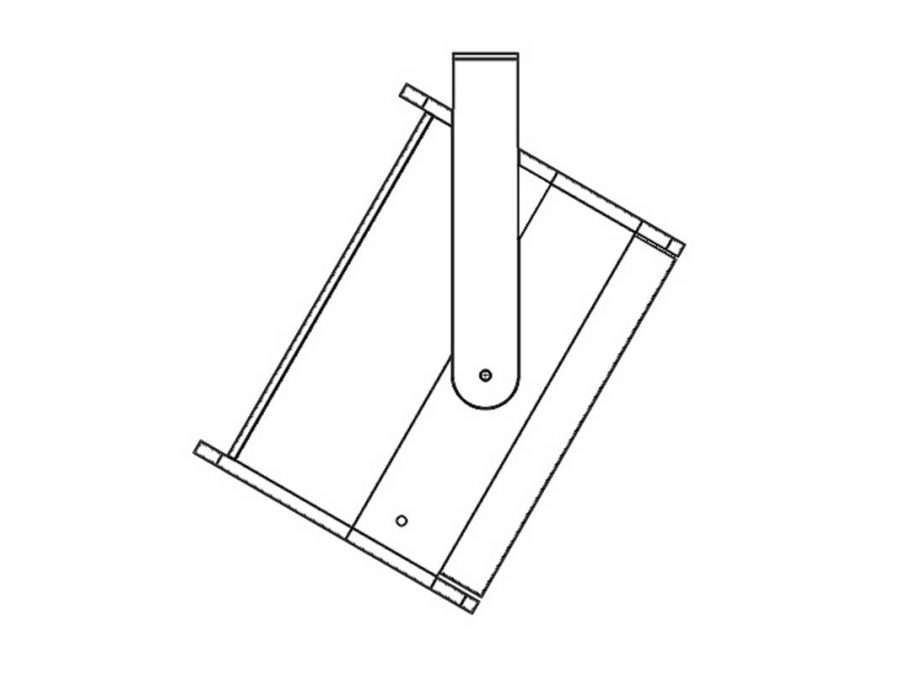

  • CU8DV

    This post is also available in: Deutsch (German)

    Vertical u-bracket for D8

  • CU8DH

    This post is also available in: Deutsch (German)

    Horizontal u-bracket D8

  • D8 100V

    This post is also available in: Deutsch (German)

    D8 including 100 V TRAFO, 100 VA

  • 24185

    This post is also available in: Deutsch (German)

    Wall mount for D8

  • GSF

    This post is also available in: Deutsch (German)

    Stand fitting for G308 / D8

  • M6 RING

    This post is also available in: Deutsch (German)

    For rigging G308 / G308-Pro / G515-Pro / G512-Pro / G715-Pro / D8 / D12 / D20

Downloads

FileAction
D8 DatasheetDownload
D8 CAD Drawing 2DDownload
D8 CAD Drawing 3DDownload
D8 Accessories - DrawingsDownload
D8 Presets for C3 + C5 (complete package)Download
CODA Audio Weather Protection Download
