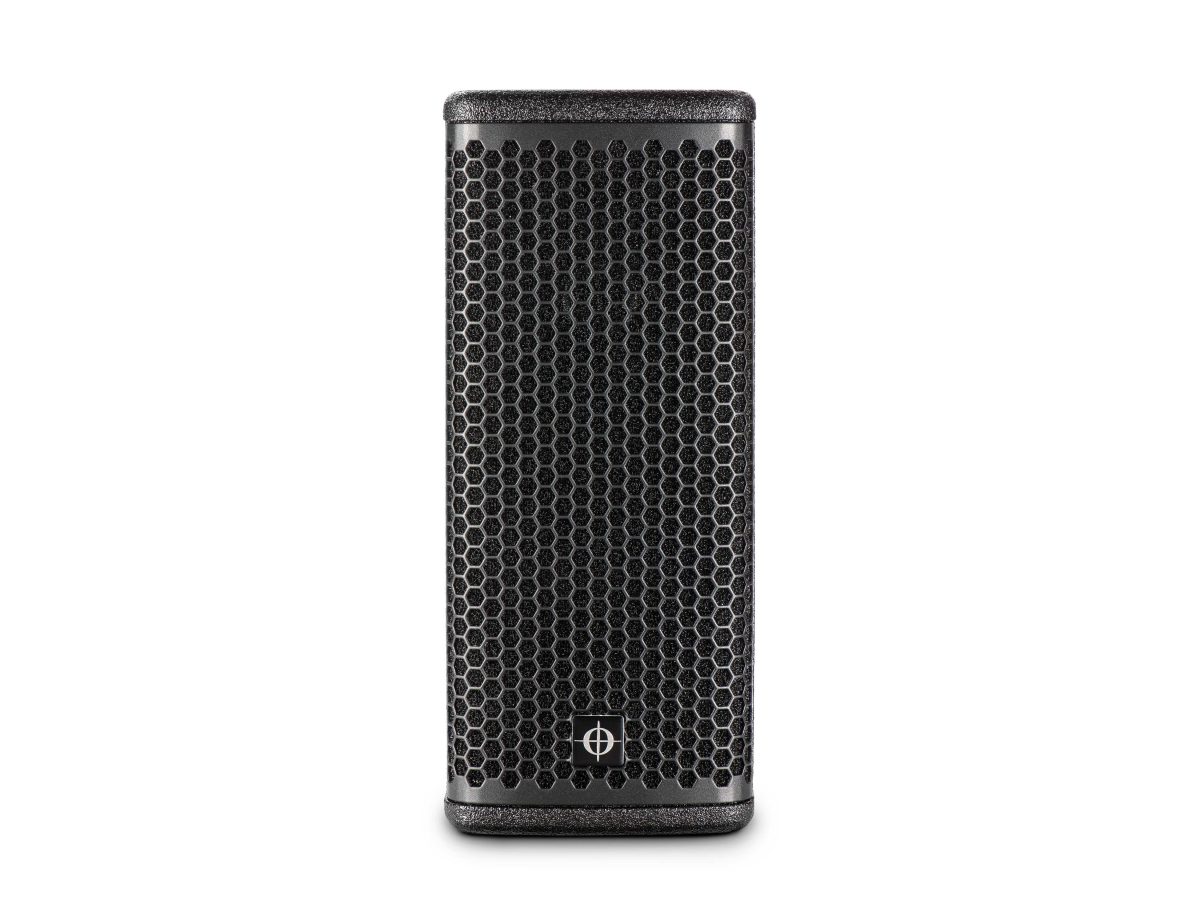

HOPS5 : Point Source.

Ultra Compact 2-way High Output Point Source

HOPS5 Photo
HOPS5 Photo
HOPS5 Photo
HOPS5 Photo
HOPS5 Photo
HOPS5 Photo
HOPS5 Size Comparison
HOPS5 Photo
HOPS5 Photo
HOPS5 Photo
HOPS5 Photo
HOPS5 Photo
HOPS5 Photo
HOPS5 Size Comparison

Ultra compact 2-way coherent point source, double 5” coaxial system, compact and versatile

  • Super-powerful, passive 2-way system with immense output-to-size ratio, and 100° x 100° coverage. If you're looking to kit out a small to medium size venue where you're in need of high fidelity sonics and plenty of kick, HOPS5 is the box for you.


Main Features

  • Ultra compact 2-way coherent point source
  • Frequency responce 80 Hz to 20 kHz (-6 dB)
  • High power handling of 300 W (AES)
  • Double 5” coaxial system
  • Compact and versatile
  • Symmetrical coverage of 100°
  • Superior sound quality
  • Optimised for near-field applications
  • High output before feedback
  • Available as right or left version
  • Ball impact resistant (DIN 18032-3)
  • System integration with LINUS amplifier

This post is also available in: Deutsch (German)

Overview

HOPS5 (High Output Point Source) is a super-powerful, passive 2-way system with immense output-to-size ratio, and 100° x 100° coverage. If you’re looking to kit out a small to medium size venue where you’re in need of high fidelity sonics and plenty of kick, HOPS5 is the box for you.

These speakers can be used for corporate events or exhibitions, DJ foldback, sound reinforcement for small clubs, or even as stage monitors or front fills at a live show. In the theatre, they work great as under balcony fills.

HOPS5 has a double 5″ coaxial system, high power handling of 300 W, and a symmetrical coverage of 100°. At the heart of HOPS5 are its two super-smart drivers: one 5″/1.75″ neodymium coaxial driver, and an additional 5″  LF driver. The 5″ cone covers the 60 – 1500 Hz frequency range with extremely high efficiency and a silky smooth linear response. What’s particularly clever is the design: three aluminium shorting rings reduce inter-modulation distortion, which minimises induction variation while reducing thermal compression at the same time. In a nutshell, it reduces the distortion massively at longer excursion levels, and in doing so, improves the overall sound quality, providing a smooth and linear response.

The high frequency driver contains an ultra-light 1.75″ annular diaphragm which produces an exceptional transient response with very high efficiency from 1 kHz to 20 kHz. This new transducer was engineered to radiate a single source, coherent 100° wave front for superior dispersion control and pristine and transparent high fidelity sound. Together, they guarantee uniform coverage with perfect time alignment between the components.

HOPS5 is designed to work with dedicated CODA Audio LINUS5-C or LINUS10-C amplifiers as an integrated solution for DSP control, amplification, network remote control, and diagnostics. This integrated solution guarantees optimal performance as well as protection.

System Solutions

NO. 1: 12 x HOPS5

SYSTEM COMPONENTS:

12x HOPS5
1x LINUS5-C / LINUS10-C

NO. 2: 2 x HOPS5 + 2 x U12

SYSTEM COMPONENTS:

2x HOPS5
2x U12
1x LINUS5-C / LINUS10-C

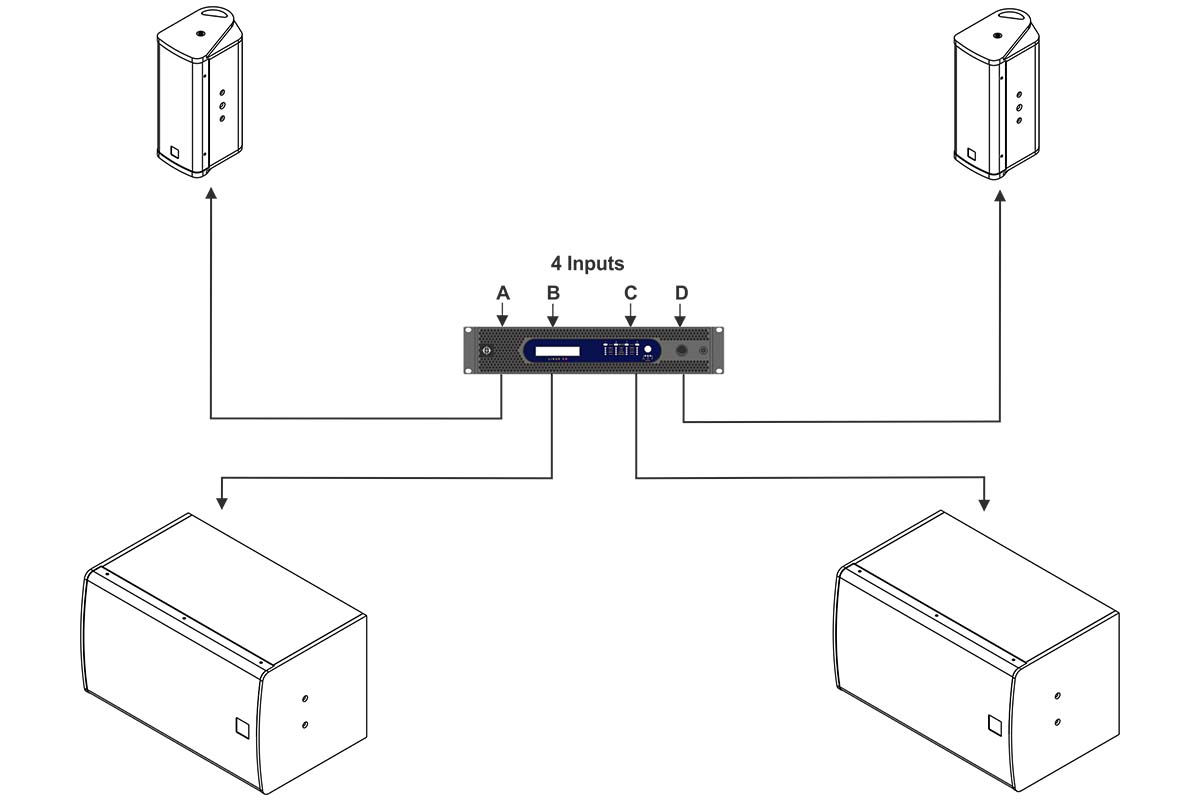

NO. 3: 2x HOPS5 + 2x U12i

SYSTEM COMPONENTS:

2x HOPS5
2x U12i
1x LINUS5-C / LINUS10-C

NO. 4: 6x HOPS5 + 2x U15

SYSTEM COMPONENTS:

6x HOPS5
2x U15
1x LINUS5-C / LINUS10-C

Specification

Type: Ultra compact 2-way high output point source system
Application: Superior quality point source for near-field applications
Frequency response: 80 Hz – 20 kHz (-6 dB)
Power handling AES: 300 W
Peak power: 1200 W
Sensitivity: 94 dB*
Max. SPL peak: 124 dB
Amplification, Cabinets per Amplifier
LINUS5-C Optimum / Maximum: 8/16
LINUS10-C Optimum / Maximum: 8/16
LINUS14D Optimum / Maximum: 8/16
LINUS10 Optimum / Maximum: 4/8
Dispersion: 100° conical
Components
Low frequency: 5″ woofer, 1.5″ (38 mm) VC, 150 W (AES)
Mid/High frequency: 5″/1,75″ neodymium coaxial driver
LF: 1.5″ (38 mm) VC, 150 W (AES)
HF: 1,75″ (44.4 mm) VC, 80 W (AES)
Crossover: 1.5 kHz passive
Nominal impedance: 8 Ω (1+/1-)
Input connectors: 2x Neutrik™ NL4MP
Enclosure material: Birch plywood
Finish: Polyurea black coating
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (direct cable)
MG1 (Marine Grade 1): IP55
Suspension HOPS5: 2 x M6, 2x M8, 2x M10 fixing points:
Dimensions (WxHxD): 146 x 349 x 200 mm / 5.75 x 13.74 x 7.87″
Net weight: 6.4 kg / 14.11 lbs

* Measured with pink noice 6 dB crest factor. Half-space loading.
** In low SPL applications up to 4x HOPS5 per channel can be connected.

Accessories

  • H5V

    This post is also available in: Deutsch (German)

    Vertical u-bracket for HOPS5

  • H5H

    This post is also available in: Deutsch (German)

    Horizontal u-bracket for HOPS5

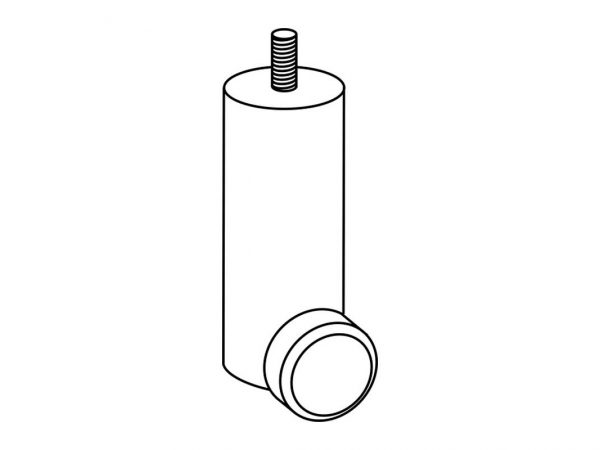

  • SF36

    This post is also available in: Deutsch (German)

    Reduce flange black, m10 x 18mm

  • 24471

    This post is also available in: Deutsch (German)

    Wall mount for D5-Cube, G308-Pro, HOPS5 and HOPS8

  • COB-HOPS-2

    This post is also available in: Deutsch (German)

    Transportation bag for 2x HOPS5

Downloads

FileAction
HOPS5 DatasheetDownload
GLL file for EASEDownload
HOPS5 CAD Drawing 2DDownload
HOPS5 CAD Drawing 3DDownload
HOPS5 Accessoires - DrawingsDownload

CODA Audio Weather Protection Download
