HOPS8 : Point Source.

Compact 2-way High Output Point Source

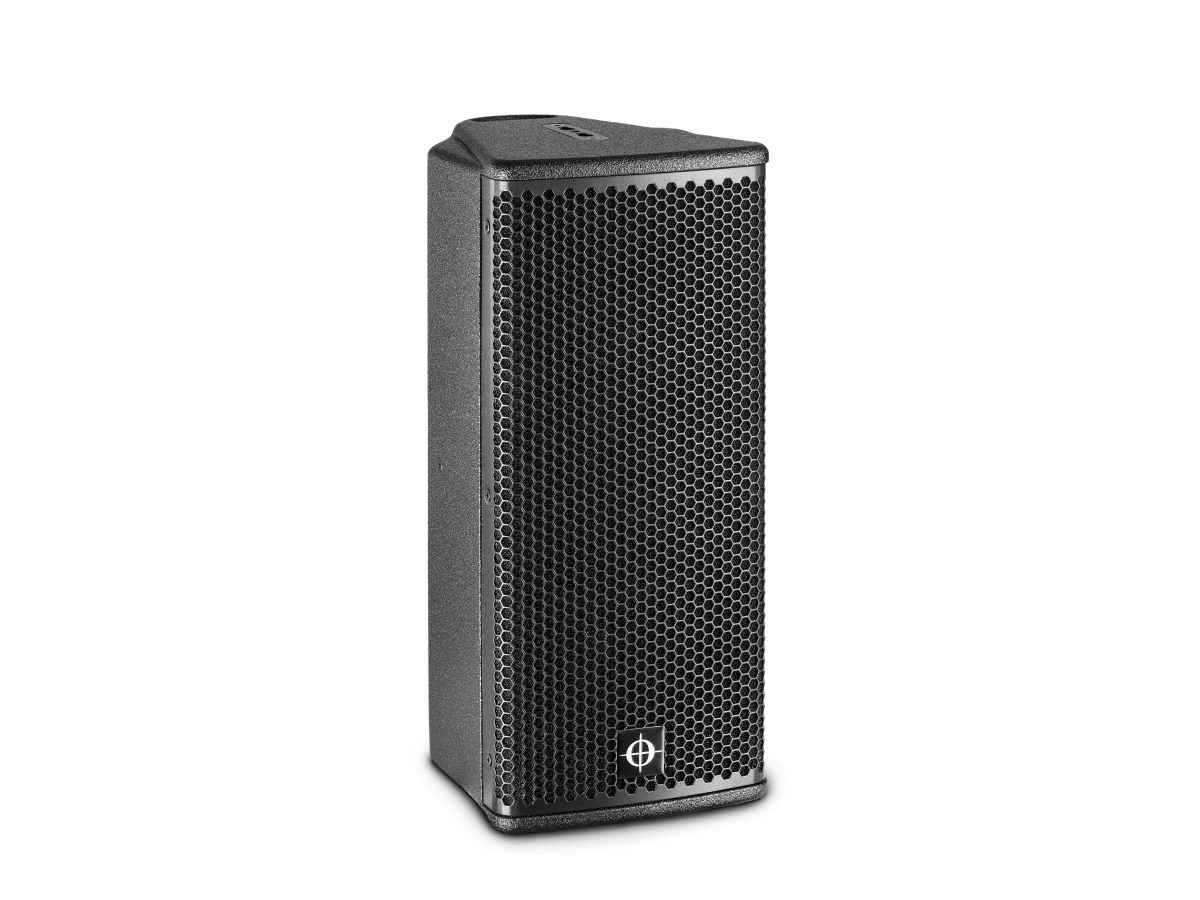

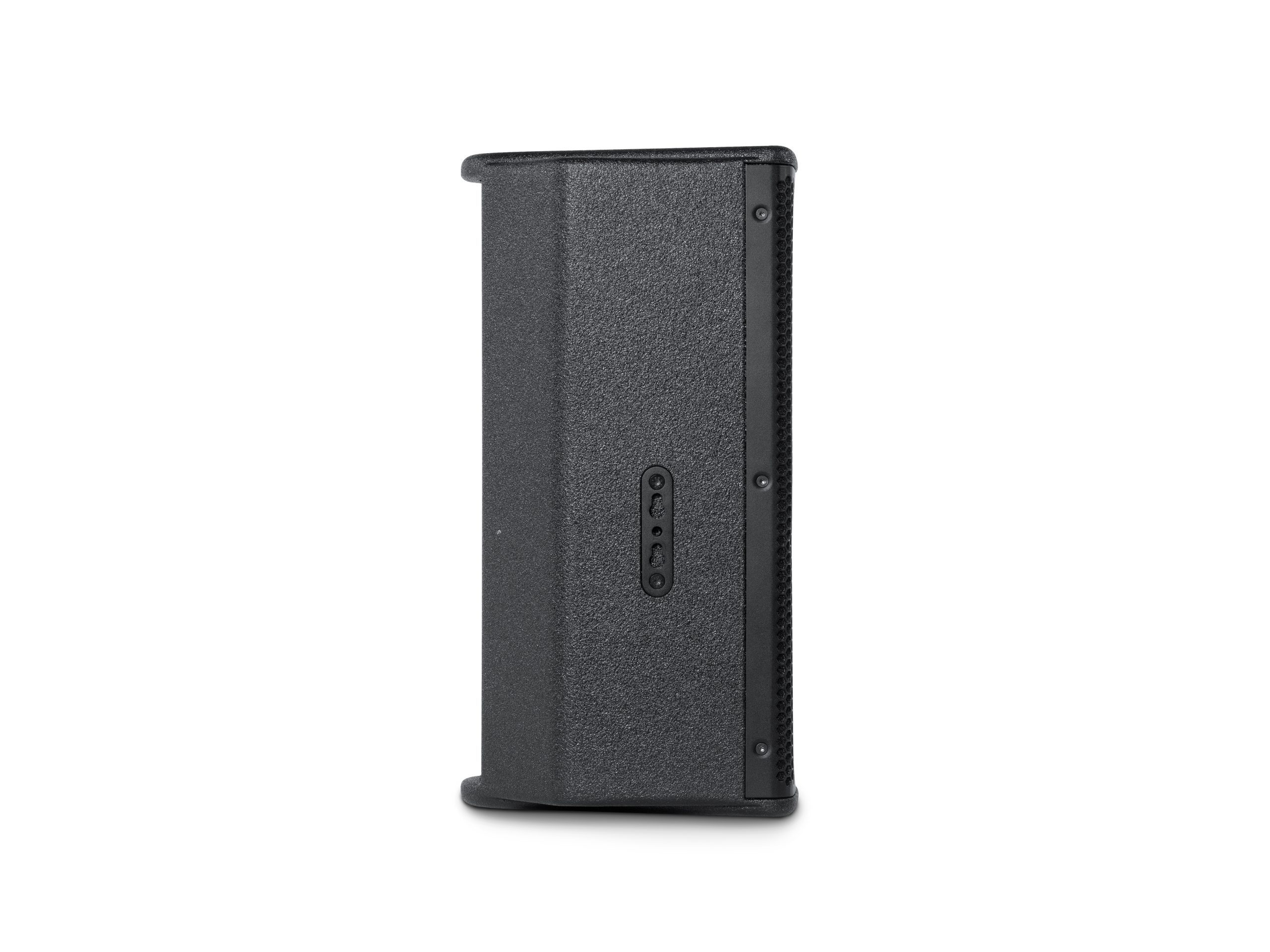

HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Size Comparison
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Photo
HOPS8 Size Comparison

2-way coherent point source, double 8” coaxial system, compact and versatile

  • Versatile dual 8” coaxial system, 450 W, 100° conical, CMS (Coda mobile suspension), flange adapter. Super-powerful, passive 2-way system with immense output-to-size ratio, and 100°x100° coverage.
    Optimised for near-field applications, two hardware versions – for installations and mobile applications.


Main Features

  • Compact 2-way coherent point source
  • Frequency range: 60 Hz – 20 kHz (-6 dB)
  • High power handling: 450 W (AES)
  • Compact and versatile
  • Wide coverage angle of 100°
  • Superior sound quality
  • Optimised for near-field applications
  • High output before feedback
  • Two hardware versions – HOPS8i for installations and HOPS8T for mobile applications
  • Ball impact resistant (DIN 18032-3)
  • System integration with LINUS amplifiers
  • Available as right or left version

This post is also available in: Deutsch (German)

Overview

Versatile dual 8” coaxial system, 450 W, 100° conical, CMS (CODA mobile suspension), flange adapter

HOPS8 (High Output Point Source) is a super-powerful, passive 2-way system with immense output-to-size ratio, and 100°x100° coverage. If you’re looking to kit out a small to medium size venue where you’re in need of high fidelity sonics and plenty of kick, HOPS8 is the box for you.

There are two HOPS8 options: HOPS8T, for mobile applications; and HOPS8i, for permanent installations, both of which are phenomenally versatile. These speakers can be used for corporate events or exhibitions, DJ foldback, sound reinforcement for small clubs, or even as stage monitors or front fills at a live show. In the theatre, they work great as under balcony fills.

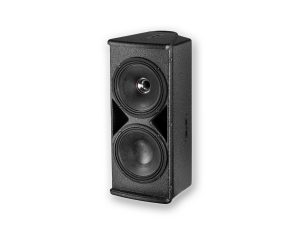

HOPS8 has a double 8″ coaxial system at its core, high power handling of 450 W, and a symmetrical coverage of 100°. At the heart of HOPS8 are its two super-smart drivers: one 8″/1.75″ coaxial, and an additional LF driver. The 8″ cone covers the 60-1500 Hz frequency range with extremely high efficiency and a silky smooth linear response. What’s particularly clever is the design: two aluminium shorting rings reduce inter-modulation distortion, which minimises induction variation while reducing thermal compression at the same time. In a nutshell, it reduces the distortion massively at longer excursion levels, and in doing so, improves the overall sound quality, providing deep and punchy bass.

The high frequency driver contains an ultra-light 1.75″ annular diaphragm which produces an exceptional transient response with very high efficiency from 1 kHz to 20 kHz. This new transducer was engineered to radiate a single source, coherent 100° wave front for superior dispersion control and pristine and transparent high fidelity sound. Together, they guarantee uniform coverage with perfect time alignment between the components.

HOPS8 is designed to work with dedicated CODA Audio LINUS5-C or LINUS10-C amplifiers as an integrated solution for DSP control, amplification, network remote control, and diagnostics. This integrated solution guarantees optimal performance as well as protection.

System Solutions

NO. 1: 12x HOPS8

SYSTEM COMPONENTS:

12x HOPS8
1x LINUS5-C / LINUS10-C

NO. 2: 6x HOPS8 + 2x G15-SUB

SYSTEM COMPONENTS:

2x HOPS8
2x G15-SUB
1x LINUS5-C / LINUS10-C

NO. 4: 6x HOPS8 + 2x U4

SYSTEM COMPONENTS:

6x HOPS8
2x U4
1x LINUS10-C

Specification

Type: Compact 2-way high output point source system
Application: Superior quality point source for near-field applications
Frequency response: 60 Hz – 20 kHz (-6 dB)
Power handling AES: 450 W
Peak power: 1800 W
Sensitivity: 98 dB*
Max. SPL peak (with LINUS10-C): 131 dB
Amplification, Cabinets per Amplifier
LINUS5-C Optimum / Maximum: 4/12
LINUS10-C Optimum / Maximum: 8/16
LINUS14D Optimum / Maximum: 8/16
LINUS10 Optimum / Maximum: 4/8
Dispersion: 100° conical
Components
Low frequency: 8″ woofer, 2″ (51 mm) VC, 225 W (AES)
Mid/High frequency: 8″/1,75″ coaxial driver, Low: 2″ (51 mm),
High: 1.75″ (44.4 mm) voice coil, 225 W + 80 W (AES)
Crossover: 1.5 kHz passive
Nominal impedance: 8 Ω (1+/1-)
Input connectors: 2x Neutrik™ NL4MP
Enclosure material: Birch Multiplex
Finish: Polyurea black coating
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (Direct cable)
MG1 (Marine Grade 1): IP55
Suspension: HOPS8T: CMS (CODA mobile suspension) + flange adapter
HOPS8i: M6 threaded points
Dimensions (WxHxD): 230 x 540 x 270 mm / 9.05 x 21.26 x 10.63″
Net weight: 12 kg / 26.46 lbs

* Measured with pink noice 6 dB crest factor. Half-space loading. ** In low SPL applications up to 4x HOPS8 per channel can be connected.

Accessories

  • H8V

    This post is also available in: Deutsch (German)

    Vertical u-bracket for HOPS8

  • H8H

    This post is also available in: Deutsch (German)

    Horizontal u-bracket for HOPS8

  • HL8

    This post is also available in: Deutsch (German)

    Vertical l-bracket for HOPS8T

  • H8TH

    This post is also available in: Deutsch (German)

    Horizontal u-bracket for HOPS8T

  • 24471

    This post is also available in: Deutsch (German)

    Wall mount for D5-Cube, G308-Pro, HOPS5 and HOPS8

Downloads

FileAction
HOPS8T/HOPS8i DatasheetDownload
HOPS8 GLL-File for EASE and EASE Focus 3Download
HOPS8T CAD Drawing 2DDownload
HOPS8T CAD Drawing 3DDownload
HOPS8i CAD Drawing 2DDownload
HOPS8i CAD Drawing 3DDownload
HOPS8T Accessoires - DrawingsDownload
HOPS8i Accessoires - DrawingsDownload
