N-SUB : Arrayable Point Source. Multipurpose Subwoofer.

Compact 15" Subwoofer for N-APS

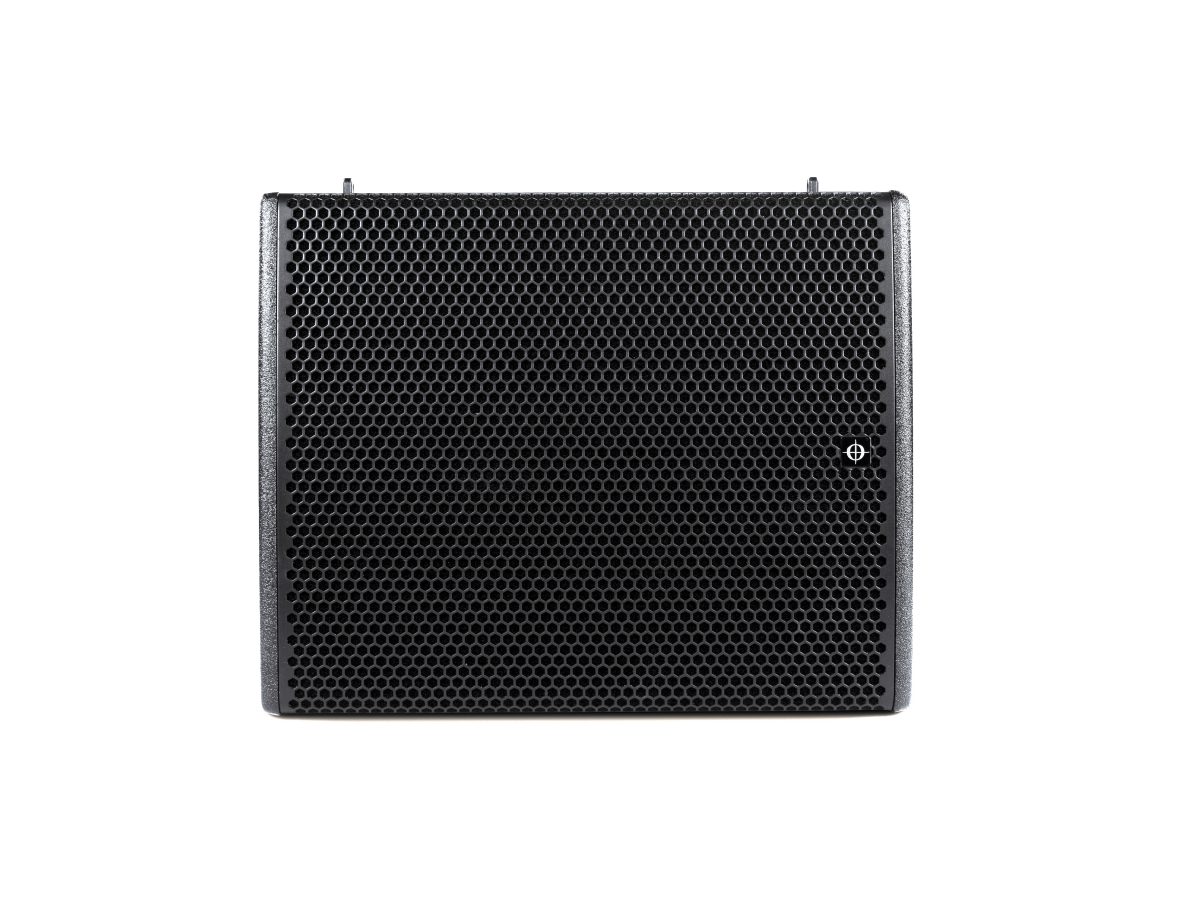

N-SUB Photo

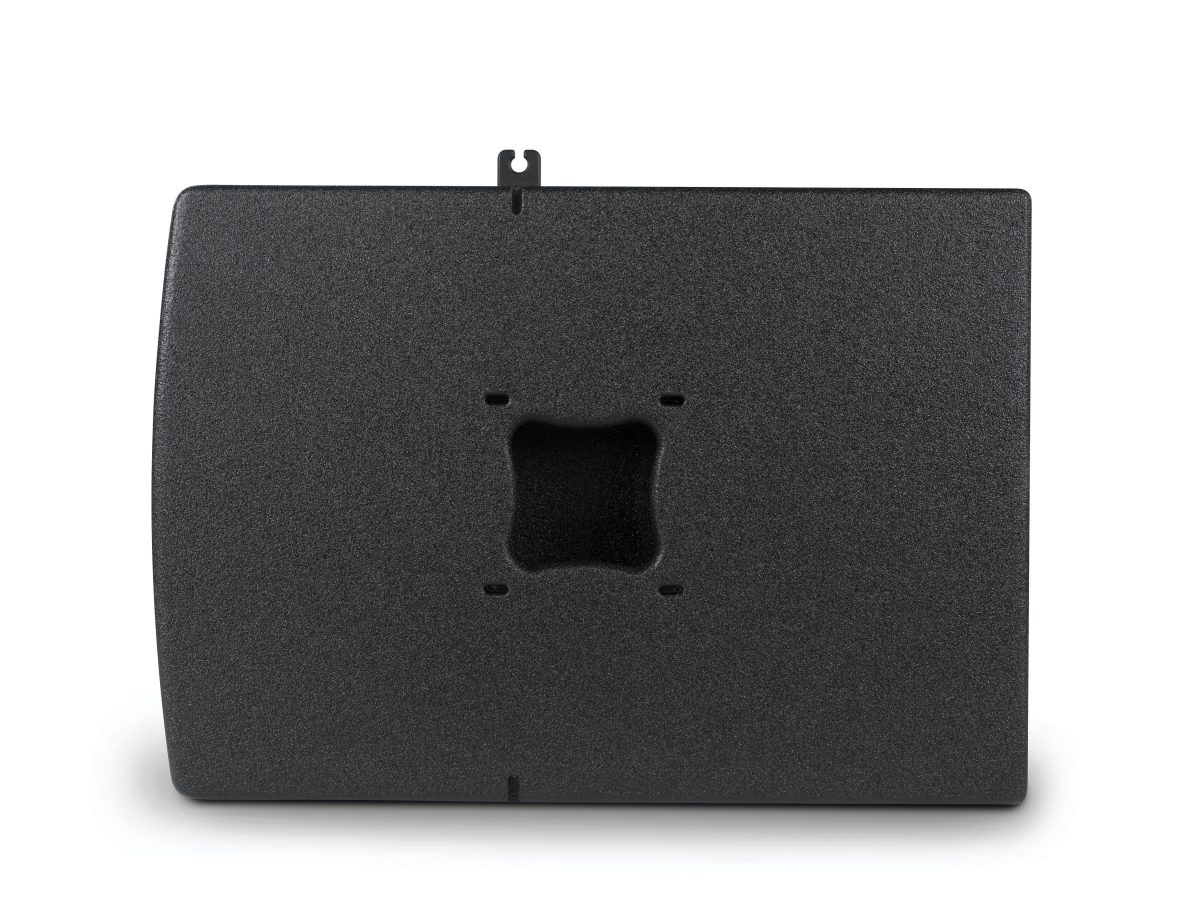

N-SUB Photo

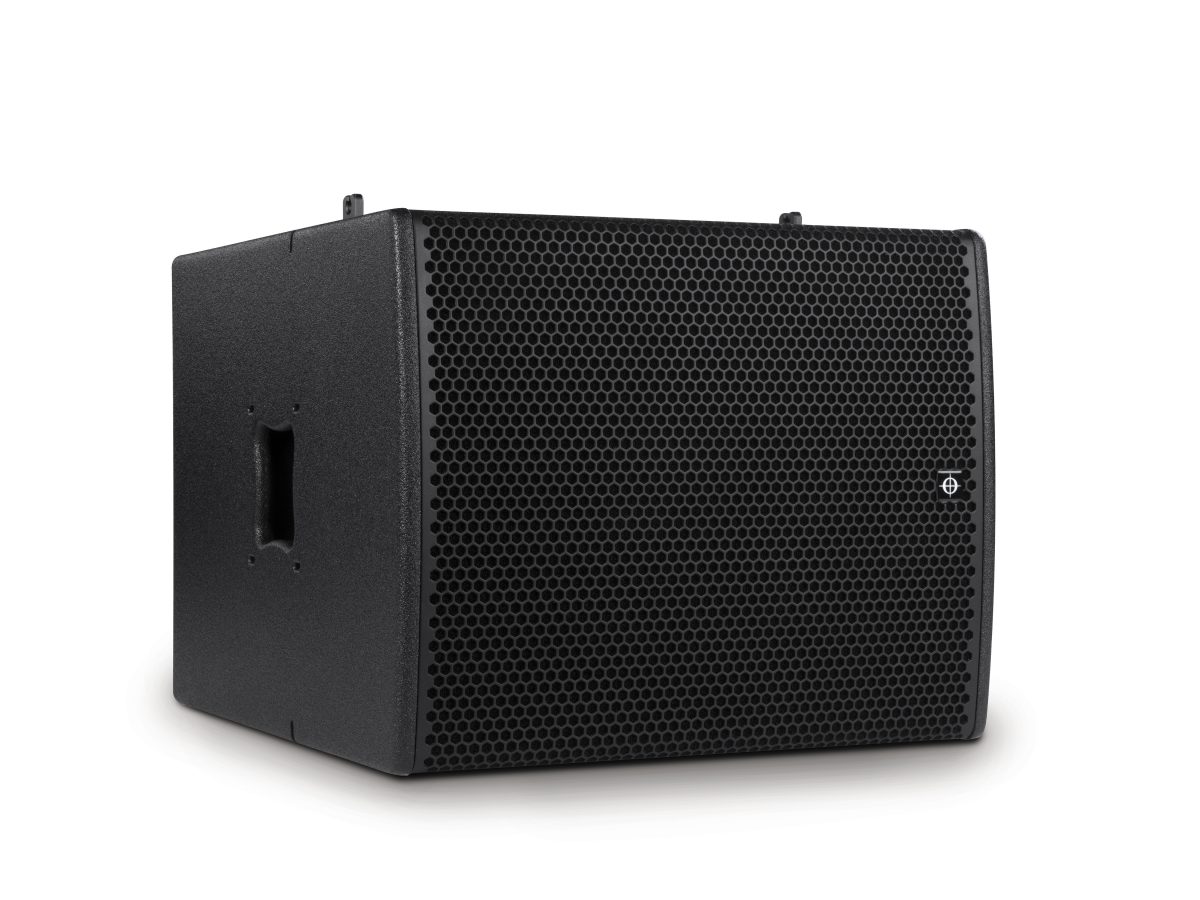

N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Size Comparison
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Photo
N-SUB Size Comparison

Compact 15" subwoofer, Extended frequency range down to 30 Hz (-6 dB)

  • A compact 15" subwoofer, weighing in at 28 kg. With high power handling of 1500 W, a maximum SPL of 139 dB (peak), this is a sub with guts - it reaches as low as 30 Hz.


Main Features

  • Compact 15″ subwoofer
  • Light weight of 28 kg
  • Frequency range: 30 Hz – 150 Hz (-6 dB)
  • High power handling: 1500 W (AES)
  • Maximum SPL 139 dB (peak)
  • Ultra low distortion 15″ neodymium woofer
  • Dynamical Airflow Cooling (DAC) ensures exceptionally high sound pressure and low power compression
  • Integrated one pin rigging compatible with N-APS for flyable or ground stackable arrays
  • System integration with LINUS Loudspeaker Management Amplifiers

This post is also available in: Deutsch (German)

Overview

The N-SUB is a compact 15” subwoofer, weighing in at 28 kg. With high power handling of 1500 W, a maximum SPL of 139 dB (peak), this is a sub with guts – it reaches as low as 30 Hz. Like CODA’s N-APS, N-SUB benefits from Dynamic Airflow Cooling (DAC) – a revolutionary technology which allows the box to hit very high SPLs while staying completely cool – contrasting traditional sub behaviour, where applying more power generally increases the heat inside, resulting in compressed and distorted audio. In the N-SUB’s case, all sonic clarity is retained – it simply gets louder. Much louder.

Dynamic Airflow Cooling (DAC).

Putting that immense amount of power into a compact enclosure required a new enclosure design and a new thermal concept. The N-SUB front baffle and vents are made from aluminum with all drivers mounted into it. The aluminum vents are optimised to maximise airflow increasing the thermal capacity of the system. Applying more power increases the airflow in the vents conducting more heat away from the drivers and distributing that heat outside the enclosure. The patented DAC technology dramatically improves heat dissipation increasing twice the power handling and the maximum sound pressure of the system.

State of the Art Neodymium Cone Driver.

The N-SUB is equipped with a long excursion 15” ultra low distortion driver. A strong motor delivers extreme high magnetic flux, which makes it super efficient – its 4″ voice coil ensures ultra linear excursion at a consistent magnetic force. The cone ensures maximum stiffness and low moving mass. Three aluminium shorting rings reduce induction variation, which in turn minimises intermodulation distortion whilst reducing thermal compression. Ultimately, this improves the overall sonic performance, resulting in a greater audience experience.

System Solutions.

The N-SUB is designed to work exclusively with CODA Audio LINUS Amplifiers as an integrated solution for DSP control, amplification, network remote control and diagnostics – this guarantees optimal performance and protection; and although its primary job is to provide low end reinforcement for N-APS, the N-SUB is also suited for a variety of applications in the touring and installation markets where compact size, high precision and deep, punchy low frequency is needed. Think dance clubs, theatres, Houses of Worship, and a variety of live sound venues.

System Solutions

8x N-SUB Cardio

SYSTEM COMPONENTS:

8x N-SUB
1x LINUS10-C (LINUS14, LINUS10)

ACCESSORIES:

4x DOT-N-SUB

CABLES:
2x CAL-Comb1

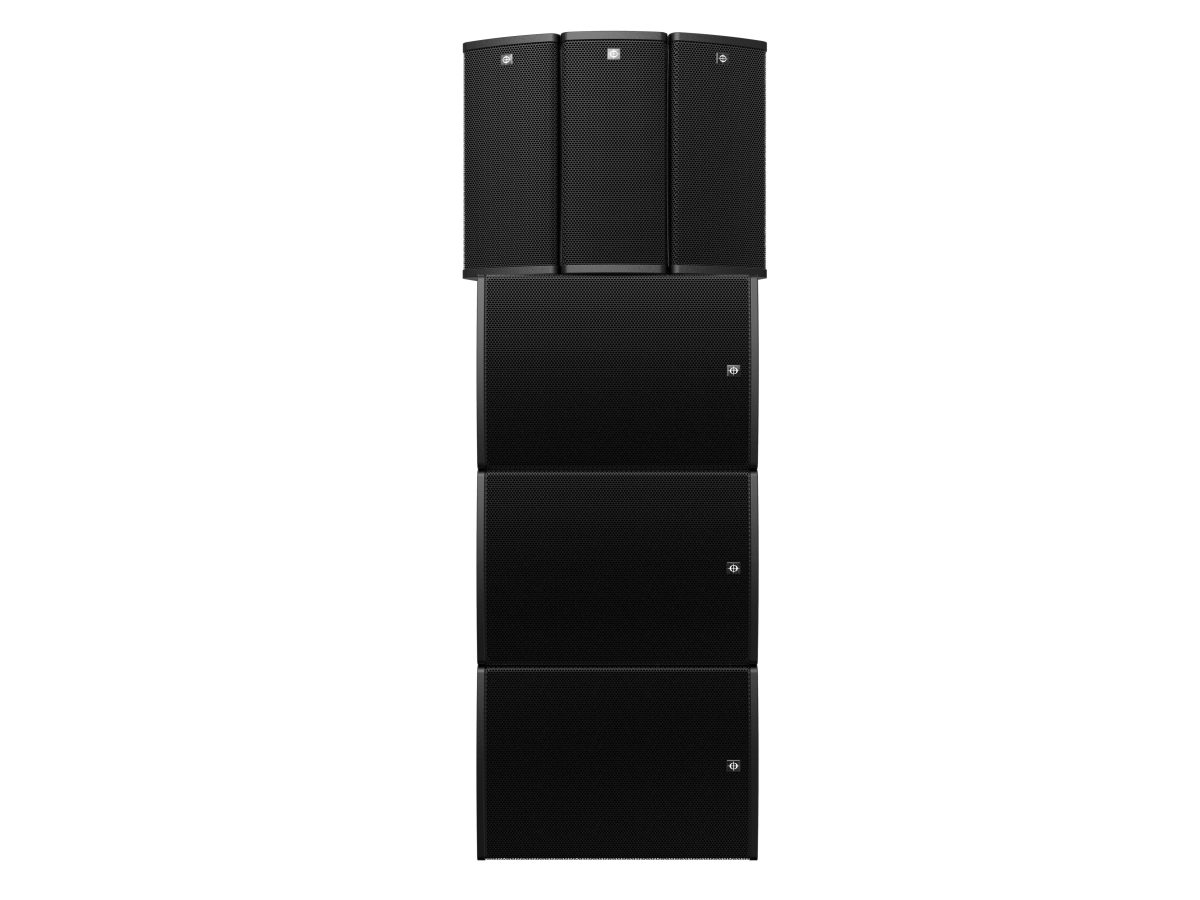

2x N-APS + 2x N-SUB

SYSTEM COMPONENTS:

2x N-APS
2x N-SUB
1x LINUS12C (LINUS14)

ACCESSORIES:

2x CU-N-APS
1x DOT-N-SUB

CABLES:

4x CAL4SP-10

6x N-APS + 6x N-SUB

SYSTEM COMPONENTS:

6x N-APS
6x N-SUB
1x LINUS12C (LINUS14)

ACCESSORIES:

2x LID-N-SUB
2x GAH-N-APS
2x DOT-N-SUB

CABLES:

2x CAL4SP-10
6x CAL4SP-1,5

4x CAB4

Specification

Type: Compact 15″ subwoofer for N-APS
Application: Small / Medium venues
Frequency response (-6 dB): 30 Hz – 150 Hz
Power handling AES / peak (passive): 1500 W / 6000 W
Sensitivity
Maximum output peak:* 139 dB
Amplification, Cabinets per Amplifier
LINUS10-C Optimum / Maximum: 8/12
LINUS12C Optimum / Maximum: 8/12
LINUS14 Optimum / Maximum: 8/12
Components: 15″ ultra low distortion woofers, 4″ (101.6 mm) voice coil, 1500 W (AES)
Nominal impedance: 8 Ω (+1/-1)
Input connectors: 2x Neutrik™ NL4MP
Suspension: Integrated + M20 flange
Enclosure material: Hybrid – Baltic birch and aluminium
Finish: Polyurea coating
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (Amphenol connectors)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD): 518 x 418 x 595 mm / 20.39 x 16.46 x 23.43″
Dimensions incl. hardware (WxHxD): 518 x 446 x 595 mm / 20.39 x 17.56 x 23.43″
Net weight: 28 kg / 61.73 lbs

* Measured with pink noise 6 dB Crest Factor. Half-space loading.

Accessories

  • DOT-N-SUB

    This post is also available in: Deutsch (German)

    Transport dolly for 3x N-SUB

  • LID-N-SUB

    This post is also available in: Deutsch (German)

    Groundstack adapter plate for horizontal arrayed N-APS on N-SUB

  • GAH-N-APS

    This post is also available in: Deutsch (German)

    Groundstack adapter for horizontally stacked N-APS

  • FRV-N-APS

    This post is also available in: Deutsch (German)

    Frame for vertically arrayed N-APS

  • FRV-DA-N-APS

    This post is also available in: Deutsch (German)

    Pullback adapter plates for vertical arrayed N-APS or N-SUB

  • CAL-COMB1

    This post is also available in: Deutsch (German)

    Loudspeaker Cable (2CH), NL4 to 2x NL4 (1+/1-) – 10m

  • CO-N-SUB

    This post is also available in: Deutsch (German)

    Protection cover for 1x N-SUB/ SCN-F

  • CO-N-SUB EX

    This post is also available in: Deutsch (German)

    Protection cover extension for 1 x N-SUB / SCN-F, compatible with CO-N-SUB

Downloads

FileAction
N-SUB Data Sheet (English)Download
N-SUB Data Sheet (Deutsch)Download
N-SUB CAD Drawing 2DDownload
N-SUB CAD Drawing 3DDownload
N-SUB Accessories - DrawingsDownload
CODA Audio Weather Protection Download
