Ultra Compact dual 6.5" 2-way Arrayable Point Source

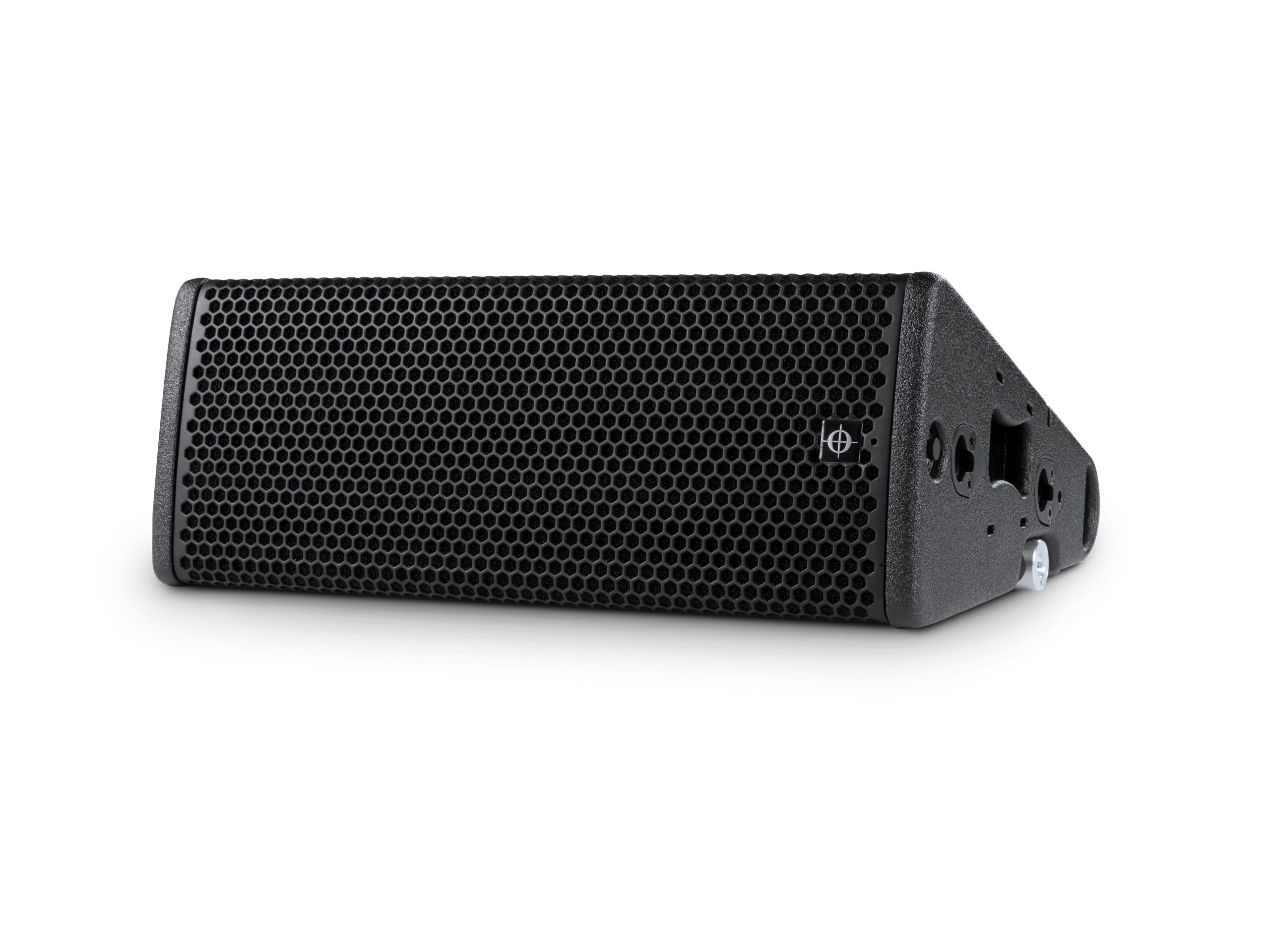

  • The N-APS is an ultra compact dual 6.5”, 2-way arrayable point source that combines the versatility of a point source with the perfect array ability of a line array, creating a unique category of sound reinforcement system for small to medium size venues.


Main Features

  • Light weight of 12.2 kg
  • Frequency range: 60 Hz – 20 kHz (-6 dB)
  • Unique 6″ Ring Diaphragm Curved wave driver (RDC)
  • Dual 6.5″ neodymium ultra-low distortion cone drivers
  • Horizontal directivity of symmetrical configurations 60°, 90° or 120° or asymmetrical of 105° (45°+60°), 90° (30°+60°) and 75° (30°+45°).
  • Dynamical Airflow Cooling (DAC) ensures exceptionally high sound pressure and low power compression
  • Instafit Magnetic Coupler sums the energy from all transducers to perform as a single source
  • Subwoofer extension down to 30 Hz with N-SUB
  • System integration with LINUS Loudspeaker Management Amplifiers

This post is also available in: Deutsch (German)

Overview

The N-APS is an ultra compact dual 6.5” / 2-way arrayable point source that combines the user-friendliness of a point source with the perfect arrayability of a line array, creating a unique category reinforcement system for small to medium size venues. With the latest in driver and system design technology, N-APS delivers twice the power handling and SPL as well as significantly more low-end comparing to other systems. It offers a large dynamic range, incredible flexibility and variable horizontal directivity. Created to be a sound designers dream problem solver. Available in 60°, 90°, 120° or asymmetrical horizontal coverage.

Dynamic Airflow Cooling (DAC).

Putting that immense amount of power into a compact enclosure required a new enclosure design and a new thermal concept. The N-APS front baffle and vents are made from aluminum with all drivers mounted into it. The aluminum vents are optimised to maximise airflow increasing the thermal capacity of the system. Applying more power increases the airflow in the vents conducting more heat away from the drivers and distributing that heat outside the enclosure. The patented DAC technology dramatically improves heat dissipation increasing twice the power handling and the maximum sound pressure of the system.

Ring Diaphragm Curved wave driver (RDC)

At the heart of N-APS is a string of patented technologies, the unique RDC – similar to CODA’s planar wave driver, but with a bit of a twist, in that the wavefront is curved at 20°. This ultimately means there is very little distortion, and no reshaping required, so it offers extraordinary sonic precision. As a result, when you put more N-APS together, they perform as one single cabinet, with no interference whatsoever.

Low Frequency Drivers.

The N-APS has double 6.5” neodymium cone drivers with 2” coils. They’re long excursion drivers with high flux linear motors, which means they’re extremely efficient, and provide ultra-low distortion, with reduced power compression. Four aluminium shorting rings reduce induction variation, minimising intermodulation distortion whilst reducing thermal compression. This design dramatically reduces IM distortion and improves the overall sound quality and performance. The carbon fibre diaphragm minimises the moving mass, and improves cone stiffness and internal damping, which results in high sensitivity, and pristine sonic clarity.

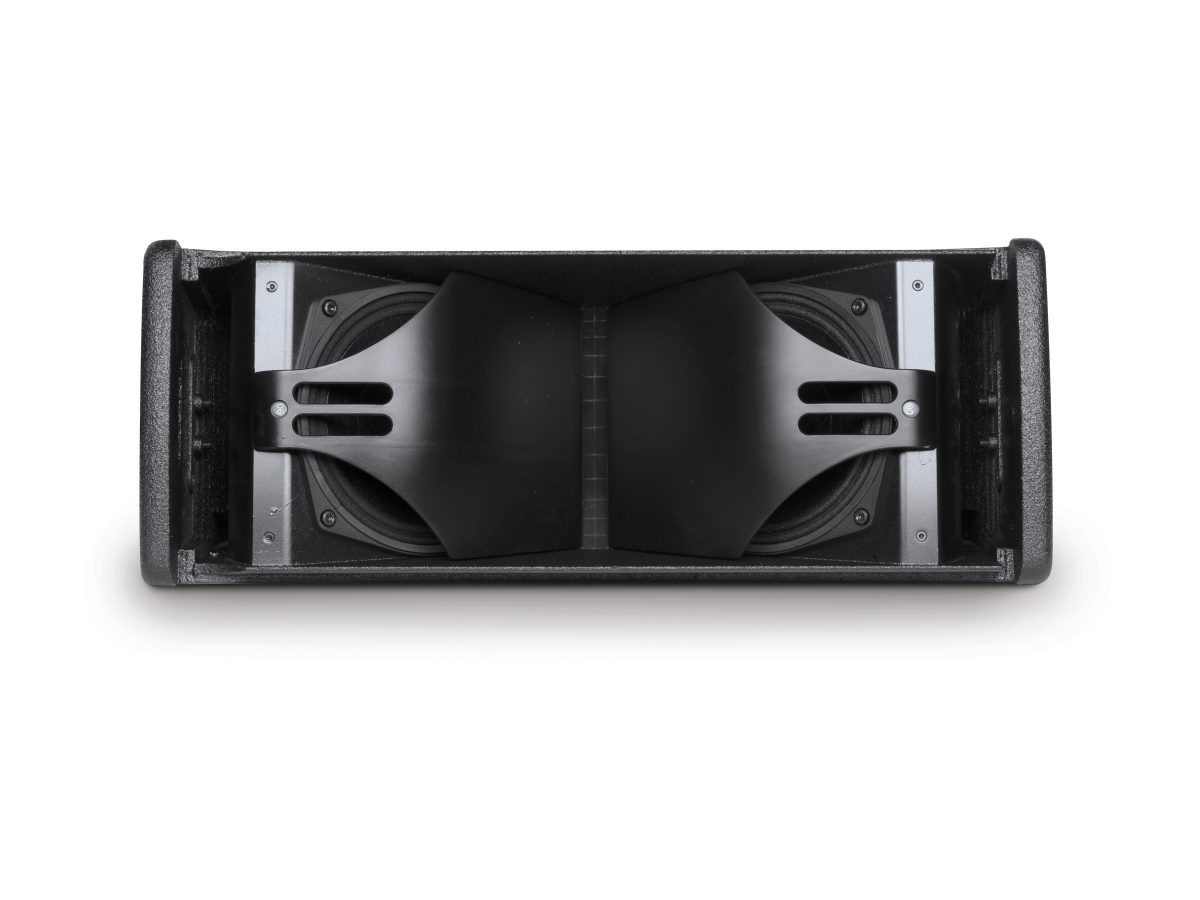

N-APS Instafit Magnetic Coupler.

The N-APS Coupler solves a common problem for a line array or arrayable box by summing the energy from all transducers to perform as a single source. It does this without any phase destruction, which allows for a perfectly coherent and uniform wavefront. Furthermore, it also determines the frequency response in the horizontal axis.

Phase Linearity.

While many of today’s loudspeakers feature a linear frequency response, very few benefit from being phase-linear, but N-APS is exactly that. As a result, there is no need to apply destructive processing when combining different elements in complex systems. It also allows for simple phase-compatibility between other CODA products delivering faithful imaging, and better overall fidelity. Used singularly or in arrays, N-APS linear phase and frequency response is consistent.

Versatility.

N-APS combines the ultra high-fidelity sound with large dynamic range, incredible flexibility and variable horizontal directivity of 60°, 90°, 120° or asymmetrical configurations of 105° (45°+60°), 90° (30°+60°) and 75° (30°+45°). Mounted vertically, each N-APS cabinet provides a fixed coverage of 20° (one cabinet), 40° (two cabinets), 60° (3 cabinets) etc. up to 360° (18 cabinets). The great thing about N-APS is that you can configure it in any way you choose thanks to the N-APS Instafit Magnetic Coupler. A single, quick release button instantly pops off the grille: one pull of the coupler, then just snap the new Instafit Magnetic Coupler back in to create the required dispersion characteristic, with no tools required. It’s as simple as that – it streamlines your workflow, whether you’re working with rental stock or using it as part of an installation. This is yet another first from CODA.

System solution.

When paired with N-APS, N-SUB takes the system right down to 30 Hz. As with all CODA boxes, N-SUB also benefits from an integrated one-pin rigging system, compatible with N-APS, for flyable or ground stackable sub arrays.

System Solutions

2x N-APS + 2x N-SUB

SYSTEM COMPONENTS:

2x N-APS
2x N-SUB
1x LINUS12C (LINUS14)

ACCESSORIES:

2x CU-N-APS
1x DOT-N-SUB

CABLES:

4x CAL4SP-10

6x N-APS + 6x N-SUB

SYSTEM COMPONENTS:

6x N-APS
6x N-SUB
1x LINUS12C (LINUS14)

ACCESSORIES:

2x LID-N-SUB
2x GAH-N-APS
2x DOT-N-SUB

CABLES:

2x CAL4SP-10
6x CAL4SP-1,5

4x CAB4

2x N-APS

SYSTEM COMPONENTS:

2x N-APS
1x LINUS12C (LINUS14)

ACCESSORIES:

2x CU-N-APS

CABLES:

2x CAL4SP-10



16x N-APS

SYSTEM COMPONENTS:

16x N-APS
1x LINUS12C (LINUS14)

ACCESSORIES:

4x FRV-N-APS

CABLES:

4x CAL-COMB2

Rigging Examples

N-APS Ground Stacked Arrays Example 1

  • 1x N-APS
  • 1x N-SUB
  • 1x CU-N-APS
  • 1x Distance pole



N-APS Ground Stacked Arrays Example 2

  • 2x N-APS
  • 1x N-SUB
  • 1x CU-N-APS
  • 1x Distance pole

N-APS Flown Arrays Example 3

• 3x N-APS
• 1x N-SUB
• 1x FRV-N-APS

N-APS Ground Stacked Arrays Example 4

  • 3x N-APS
  • 3x N-SUB
  • 1x LID-N-SUB
  • 1x GA-N-APS

N-APS Flown Arrays Example 5

• 3x N-APS
• 1x FRH-N-APS

N-APS Flown Arrays Example 6

• 4x N-APS
• 1x FRV-N-APS

N-APS Flown Arrays Example 7

• 4x N-APS
• 1x BAR-N-APS
• 2x FRH-N-APS

N-APS Flown Arrays Example 8

• 5x N-APS
• 1x BAR-N-APS
• 2x FRH-N-APS

N-APS Flown Arrays Example 9

• 6x N-APS
• 1x FRV-N-APS

N-APS Flown Arrays Example 10

  • 8x N-APS
  • 2x FRV-N-APS
  • 1x DA-N-APS Set

Specification



Type: Ultra Compact 2-way Arrayable Point Source
Frequency response: 60 Hz – 20 kHz (-6 dB)
Power handling: 1000 W / 4000 W
Maximum peak SPL (with LINUS14) 139 db (A)
Amplification, cabinets per Amplifier
LINUS5-C Optimum / Maximum: 12/16
LINUS10-C Optimum / Maximum: 12/16
LINUS12C Optimum / Maximum: 12/16
LINUS14 Optimum / Maximum: 12/16
Dispersion horizontal: 60°, 90°, 120° or asymmetrical 75° (30°+45°); 90° (30°+60°); 105° (45°+60°)
Dispersion vertical: 20°
Components
Low frequency: 2x 6.5″ neodymium, water resistant cones 2″ (50.8 mm) voice coil, 500 W (AES) each
Mid / High frequency: 6″/20° RDC, 1.75″ (44.4 mm) voice coil, 80 W (AES)
Crossover point: 900 Hz passive
Input connectors: 2x Neutrik™ NL4MP
Nominal impedance: 12 Ω (2+/2-)
Enclosure material: Hybrid – Birch plywood and aluminium
Finish: Polyurea coating
Suspension: Integrated
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (Amphenol connectors)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD): 518 x 200 x 358 mm / 20.39 x 7.87 x 14.09″ (incl. hardware)
Net weight: 12.2 kg / 26.9 lbs

* Measured with pink noise 12 dB Crest Factor (A-weighted).

Accessories

  • FRV-N-APS

    This post is also available in: Deutsch (German)

    Frame for vertically arrayed N-APS

  • FRV-DA-N-APS

    This post is also available in: Deutsch (German)

    Pullback adapter plates for vertical arrayed N-APS or N-SUB

  • FRH-N-APS

    This post is also available in: Deutsch (German)

    Frame for horizontally arrayed N-APS

  • EXBAR FRV-FRH

    This post is also available in: Deutsch (German)

    Extension bar for FRV-APS, FRV-N-APS, FRH-APS, FRH-N-APS

  • BAR-N-APS

    This post is also available in: Deutsch (German)

    Frame for horizontally arrayed N-APS Cluster

  • CU-N-APS

    This post is also available in: Deutsch (German)

    Distance pole adapter for vertically stacked N-APS

  • GAH-N-APS

    This post is also available in: Deutsch (German)

    Groundstack adapter for horizontally stacked N-APS

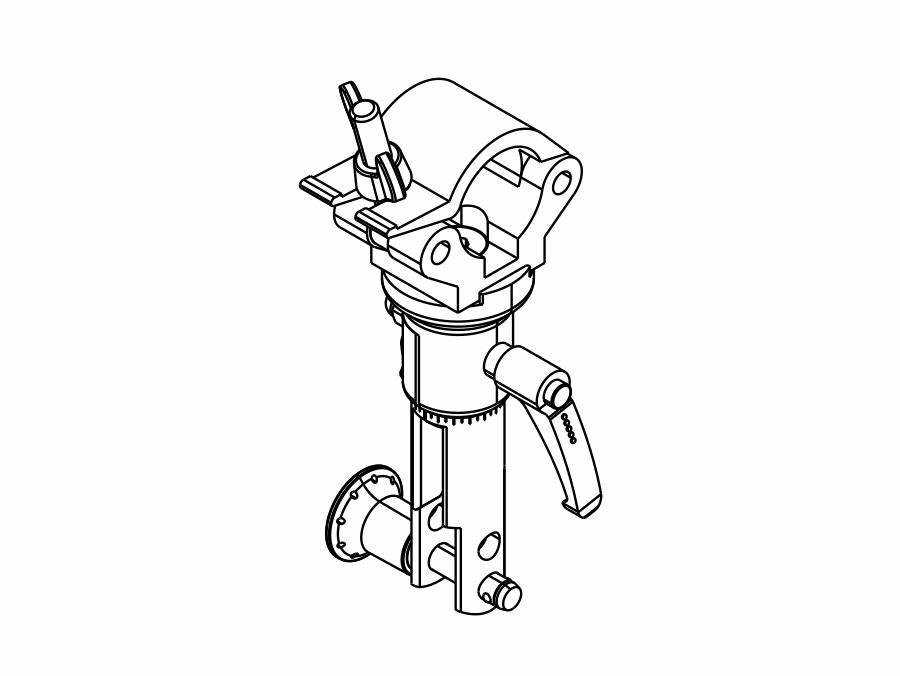

  • VARIO CLAMP

    This post is also available in: Deutsch (German)

    General truss clamp for AiRAY, ViRAY, N-RAY, TiRAY, APS, N-APS frames and extension bar

  • AV-N-APS

    This post is also available in: Deutsch (German)

    U-bracket for up to 3x N-APS, vertically stacked or flown

  • FC-N-APS

    This post is also available in: Deutsch (German)

    Flight case for 4x N-APS

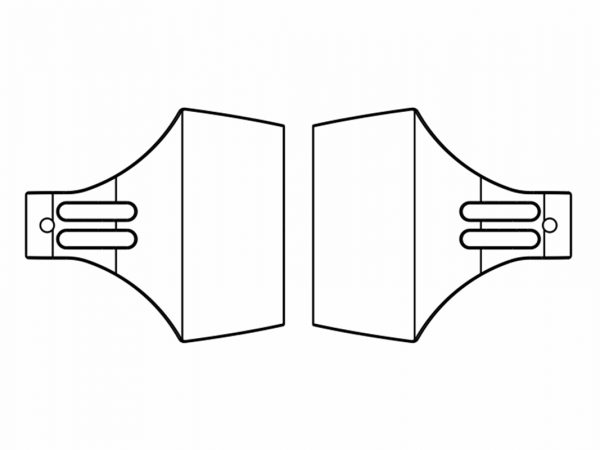

  • N-APS COUPLER 60

    This post is also available in: Deutsch (German)

    60° wave guide coupler set for N-APS

  • N-APS COUPLER 120

    This post is also available in: Deutsch (German)

    120° wave guide coupler set for N-APS

  • CAL-COMB2

    This post is also available in: Deutsch (German)

    Loudspeaker Cable (2CH), NL4 to 2x NL4 (2+/2-) – 10m

Downloads

FileAction
N-APS Data Sheet (English)Download
N-APS Datenblatt (Deutsch)Download
N-APS V1_0 GLL-FileDownload
N-APS Loading CapacityDownload
N-APS CAD Drawing 2DDownload
N-APS CAD Drawing 3DDownload
Accessories N-APS Drawings.zipDownload
CODA Audio Weather Protection Download
